10E3 Ohms Injection Grade ABS Conductive Compounds
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | SUGO |
| Certification: | ISO9001:2008 RoHs |
| Model Number: | H2106 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 Kgs |
|---|---|
| Price: | USD/KG |
| Packaging Details: | 25Kg/Bag, 40 Bags/Pallet, Wrapped arround with shrinkage film |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
|
Detail Information |
|||
| Basic Materials: | ABS | Feature: | Conductive |
|---|---|---|---|
| Application: | IC Tray, Carrier Reels | Surface Resistivity: | 10E3-4 Ohms |
| MFL: | 8 G/10min (ASTM D-1238） | Tensile Strength: | 23 Mpa (ASTM D-638) |
| Elongation: | 40% (ASTM D-638) | Flexural Modulus: | 260 Mpa (ASTM D-790) |
| Flexural Strength: | 50 Mpa (ASTM D-790) | Notch Impact Strength (23℃): | 160 J/m (ASTM D-256) |
| Highlight: | ABS Conductive Compounds,10E3 Ohms Conductive Compounds,Injection Grade Conductive ABS |
||
Product Description
ABS Conductive Compounds 10E3 ohms Injection Grade
Product introduction:

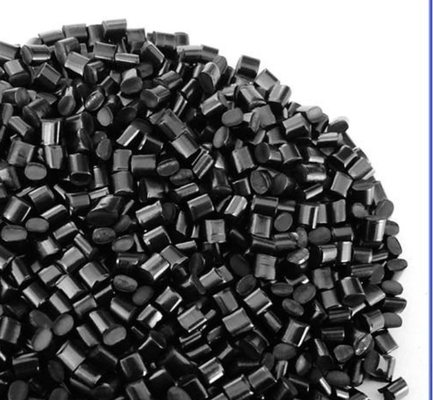

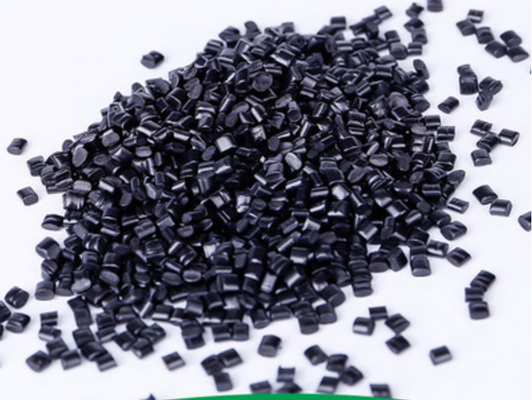

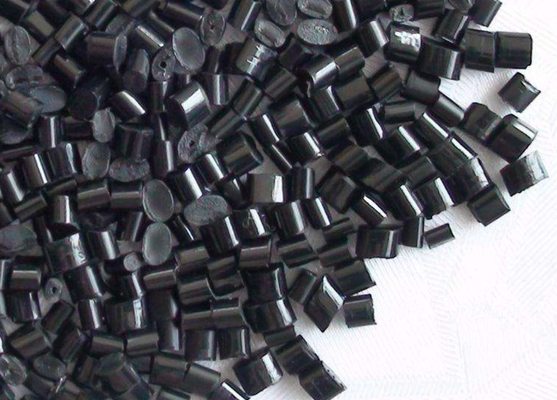

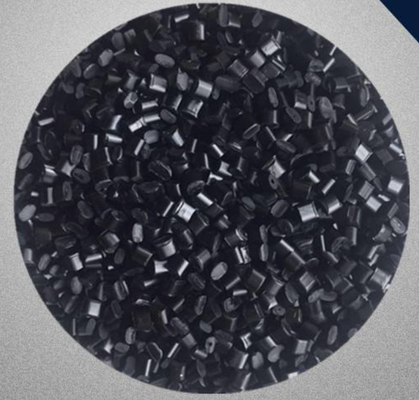

This is a ABS conductive compound with black granular appearance. It is suitable for
ABS injection molding products with conductive or anti-static requirements.
| Items | Standard | Test Conduction | Unit | Value |
| Surface Resistivity | -- | -- | Ω | 1.00E+05 |
| Tensile Strength | ASTM D-638 | -- | Mpa | 23 |
| Flexural Strength | ASTM D-790 | -- | Mpa | 50 |
| Flexural Modulus | ASTM D-790 | -- | Mpa | 260 |
| Notch Impact Strength | ASTM D-256 | Size:80×10×4mm,dent deepth:2 mm | kJ/m2 | 160 |
| MFI | ASTM D-1238 | 230℃/5Kg | g/10min | 8 |
Instructions:
Can be used directly. The baking material temperature is 85℃ for 2-3 hours, and the
Can be used directly. The baking material temperature is 85℃ for 2-3 hours, and the
recommended injection temperature is 220-240℃ (the actual temperature can be
adjusted according to the specific process).
Note: If the product is damp, please use it after drying, otherwise it will affect the appearance
and performance of the product.
Storage method:
This product is easy to absorb moisture. Seal it with a plastic bag when storing and store
it in a cool and dry place. Special attention should be paid to moisture-proof.
