Conductive Carbon Nanotube Modified Polycarbonate Compounds For IC Tray
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | SUGO |
| Certification: | ISO9001:2015; ISO14001:2015; ISO45001:2018 |
| Model Number: | BD3102 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 kgs |
|---|---|
| Price: | USD/KG |
| Packaging Details: | 25Kg/Bag, 40 Bags/Pallet |
| Delivery Time: | 3-7 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1200 Tons Monthly |
|
Detail Information |
|||
| Full Name: | Polycarbonate + Carbon Nano Tube Compounds | Simple Name: | PC + CNT |
|---|---|---|---|
| Density: | 1.2 Kg/cm3 | Melt Index: | 20.2 G/cm3 (280°C， 5 Kg) |
| Tensile Strength: | 65Mpa | Elongation: | 12.4% |
| Bend Modulous: | 2260 Mpa ISO178 | Notched Izod Impact (3.2mm): | 26.2 KJ/M2 ISO179 |
| Heat Distortion Temperature: | 129°C | Surface Resistivity: | 1*10^6 Ohms |
| Highlight: | Carbon Nanotube Modified Polycarbonate Compounds,Polycarbonate Compounds For IC Tray,Conductive Compounds For IC Tray |
||
Product Description

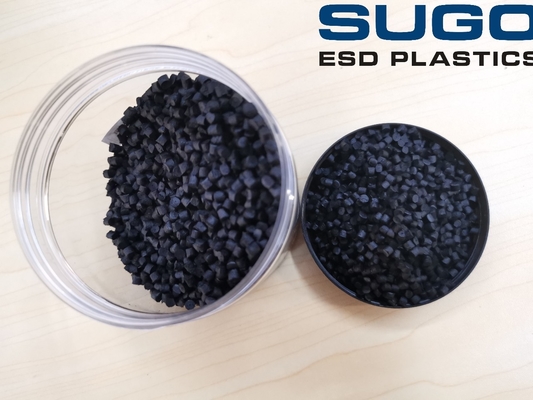

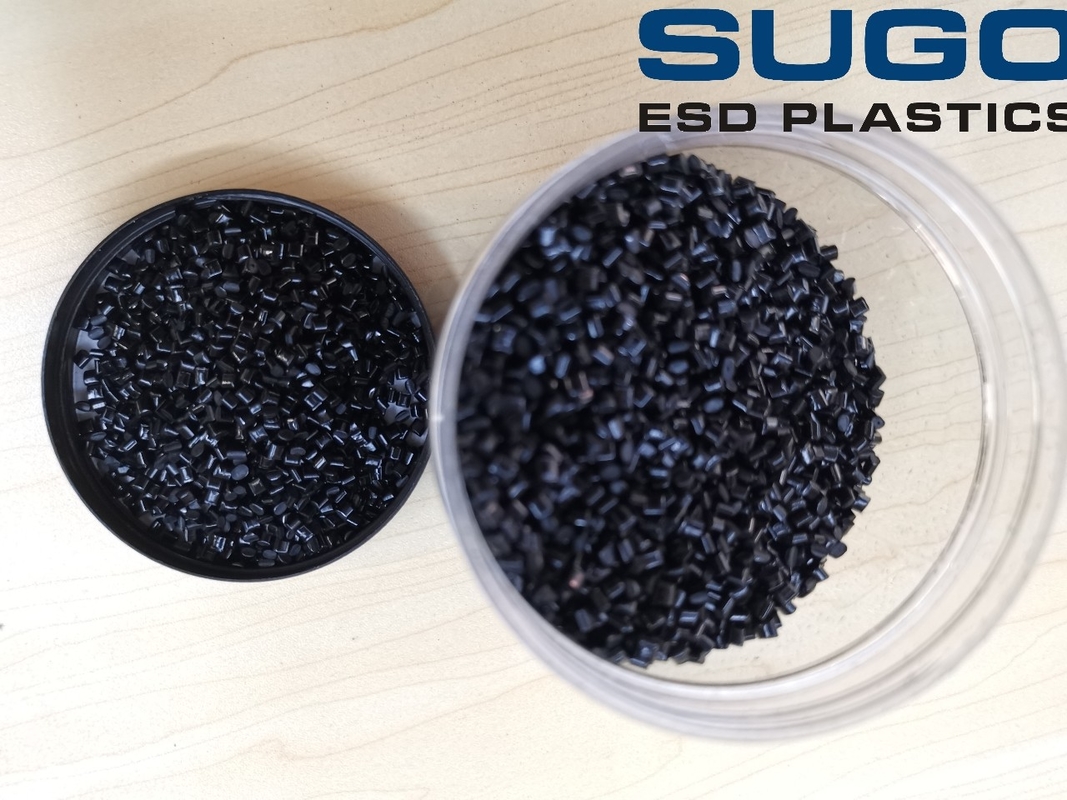

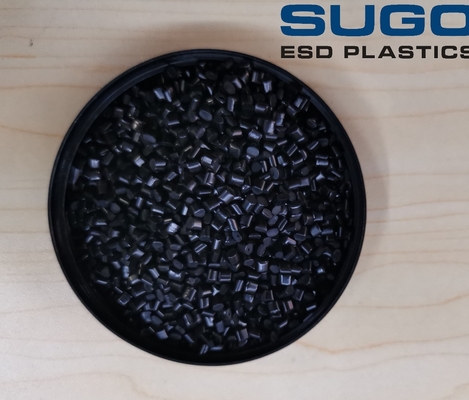

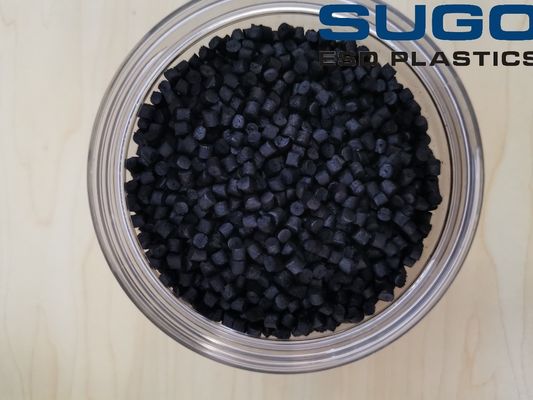

Polycarbonate + Carbon Nano Tube Compounds In Particles Used For IC Tray
PC+CNT BD3102 is a permanent anti-static special compounds modified by carbon nanotubes as
conductive additives. The base material is PC resin.
It has stable resistivity and is suitable for applications requiring excellent anti-static performance.
Here is Technical Datas for reference:
| Test Items | Test Way | Unit | Values |
| Appearance | ISO 1133 | - | In Black Granules |
| Melt Flow Index | ISO 1183 | g/cm3 (280°C,5kg) | 20.2 |
| Tensile Strength | ISO 527 | Mpa | 65 |
| Elongation | ISO 527 | % | 12.4 |
| Shrinkage | Sugo Way | % | 0.7-0.75 |
Application:
1. IC Trays
2. Carrier Reels
