POM Super Conductive Compounds For Conductive Electric Products
Product Details:
| Place of Origin: | DONGGUAN, China |
| Brand Name: | SUGO |
| Certification: | ROHS, REACH |
| Model Number: | E2113B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 kgs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25kg per bag, paper bag with inner PE layer |
| Delivery Time: | 3-7 days |
| Payment Terms: | 100% T/T before shipment, or LC at sight |
| Supply Ability: | 1500TONS/M |
|
Detail Information |
|||
| Product Name: | Conducitve POM Compounds | Color: | Black |
|---|---|---|---|
| Function: | Protect The IC/PCB From Being Damaged By ESD | Advantage: | Super Conductive |
| Surface Resistivity: | Less Than 200 Ohms | Usage: | Toner Cartridge Parts |
| High Light: | electrically conductive compounds,semi conductive compounds,High Impact Strength POM Conductive Compounds |
||
Product Description
High Impact Strength POM Conductive Compounds For Conductive Electric Products
Product Description
E2113B is a super conductive compounds with POM as basic resin, the carbon black as conductive additives.
How super is it? its surface resistivity is as low as less than 200 ohms,
this is a perfect materials used for toner cartridge parts.
Here is some technical data for reference:
| Physical Properties | Value | Unit |
| Density | 1.418 | g/cm³ |
| Melf Flow Index(200℃/5.0kg) | 3.5 | g/10min |
| Shrinkage | 2.10 | % |
| Mechanical Properties | Value | Unit |
| Tensile Strength | 348 | Kgf/cm2 |
| Flexural Modulus | 18750 | Kgf/cm2 |
| Flexural Strength | 688 | Kgf/cm2 |
| Elongation (at break) | 8.77 | % |
| Impact Properties | Value | Unit |
|
Izod Notched Impact Strength ( 3.2mm) |
5.7 | Kgf-cm/cm |

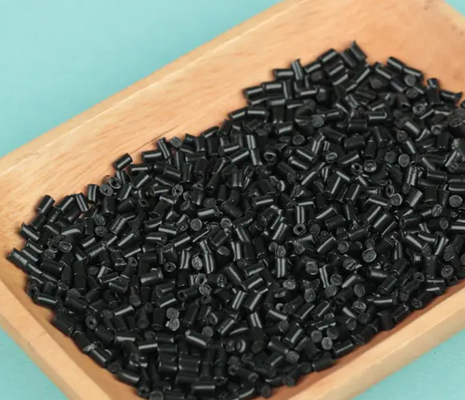

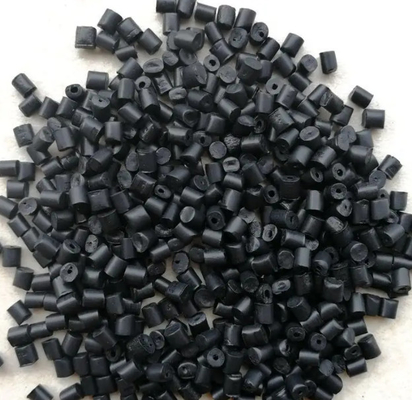

Actural Picture:
More information about Sugo Products:
SUGO’s ESD compounds are formulated by combining carbon fiber,carbon powder, non-carbon
based homogeneous materials and thermoplastic resins. These compounds meet the needs of
many industries where permanent reduction of electrostatic hazards is required.
Antistatic additives used in plastics are of two categories. One is migrating type in which the antistatic
effect is temporary. Some of the applications require a permanent long lasting antistatic performance.
The polymeric permanent antistatic type additives exhibits excellent antistatic performance right after
the product comes out of the machine till the end of life. The permanent antistatic material can be used
for extrusion, injection molding and coating applications. Loading of 5 to 20% can provide the surface
resistivity of 10E9 to 10E12 range in humidity range from 20% to 50%.
