Recycled PC Anti Static Compounds High Electrical Capacity
Product Details:
| Place of Origin: | DONGGUAN, China |
| Brand Name: | SUGO |
| Certification: | ROHS, REACH |
| Model Number: | B2408-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 kgs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25kg per bag, paper bag with inner PE layer |
| Delivery Time: | 3-7 days |
| Payment Terms: | 100% T/T before shipment, or LC at sight |
| Supply Ability: | 1000TONS/M |
|
Detail Information |
|||
| Product Name: | Antistatic Functional Masterbatch | Surface Resistivity: | 10E3-10E9 |
|---|---|---|---|
| Function: | Anti Static And Flame Retardant | Advantage: | High Content Of Antistatic Agent,Good Dispersion Performance |
| OEM/ODM: | Yes | Usage: | Polycarbonate |
| High Light: | semi conductive compounds,conductive shielding compounds,PC Anti Static Compounds |
||
Product Description
Recycled PC Anti Static Compounds High Electrical Capacity
Product Description
B2408-10 This is a kind of recycled anti static PC compounds, especially used for Electrical housing, optical lens,
lens holder, lens barrel tray, wafer carrier tray, coating tray, LCM tray.

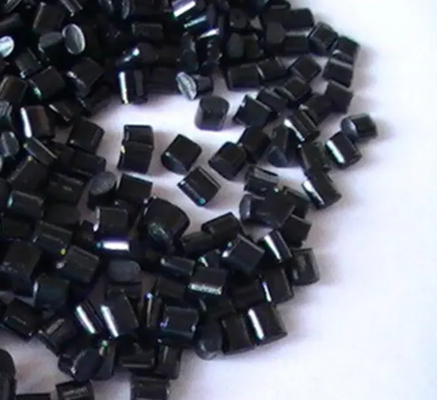

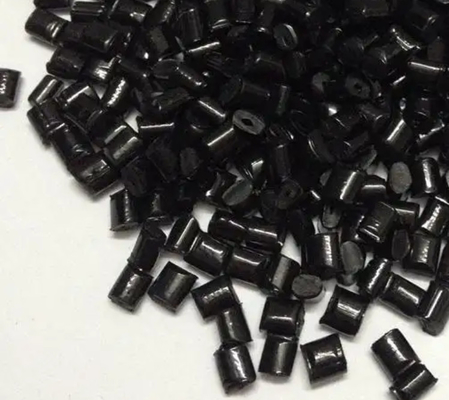

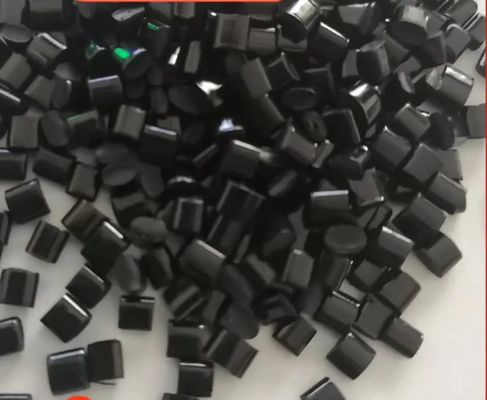

It is in black pellets, surface resistivity is about 1*10^6~9 ohms.
Main Features
Almost no migration, easy process, stable function of anti static discharge.
Properties:
| Physical | Nominal Value | Unit | Test Way |
| Specific gravity | 1.25 | g/cm³ | ASTMD792 |
| MFR(230℃/5.0kg) | 5 | g/10min | ASTMD1238 |
| Molding Shrinkage | 0.70 | % | ASTMD955 |
| Mechanical | Nominal Value | Unit | Test Way |
| Tensile strength | 562 | Kgf/cm2 | ASTMD638 |
| Flexural modulus | 22341 | Kgf/cm2 | ASTMD790 |
| Flexural strength | 654 | Kgf/cm2 | ASTMD790 |
| Tensile elongation | 8.7 | % | ASTMD638 |
| Impact | Nominal Value | Unit | Test Way |
| Notched Izod impact ( 3.2mm) | 12 | Kgf-cm/cm | ASTMD256 |
| Thermal | Nominal Value | Unit | Test Way |
| Deflection temperature under load (1.82MPa) | 125 | °C | ASTMD648 |
Want to Know more details about this product
