Super Conductive PPO Compounds Used For IC Tray
Product Details:
| Place of Origin: | DONGGUAN, China |
| Brand Name: | SUGO |
| Certification: | ROHS, REACH |
| Model Number: | F2310A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 kgs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25kg per bag, paper bag with inner PE layer |
| Delivery Time: | 3-7 days |
| Payment Terms: | 100% T/T before shipment, or LC at sight |
| Supply Ability: | 1000TONS/M |
|
Detail Information |
|||
| Product Name: | Super Conductive PPO Compounds | Color: | Black |
|---|---|---|---|
| Carrier: | PPO | Surface Resistivity: | Less Than 200 Ohms |
| Form: | Cylindrical Pellet | Usage: | IC Tray |
| High Light: | semi conductive polypropylene pellet,electically conductive pp pellet,Super Conductive PPO Compounds |
||
Product Description
Super Conductive PPO Compounds Used For IC Tray
PPO F2310A is a super conductive PPO compounds used for IC tray, with its super low surface resistivity,
which is less than 200 ohms, very suitable for high quality conductive IC tray.
Features:
- Super low surface resistivity;
- Dimension Stable
- High Regidity
- High Strength
- Anti High Temperature
Properties:
| Physical | Nominal Value | Unit | Test Way |
| Specific gravity | 1.2 | g/cm³ | ASTMD792 |
| MFR(230℃/5.0kg) | 2.1 | g/10min | ASTMD1238 |
| Molding Shrinkage | 0.75 | % | ASTMD955 |
| Mechanical | Nominal Value | Unit | Test Way |
| Tensile strength | 285 | Kgf/cm2 | ASTMD638 |
| Flexural modulus | 34515 | Kgf/cm2 | ASTMD790 |
| Flexural strength | 624 | Kgf/cm2 | ASTMD790 |
| Tensile elongation | 5.2 | % | ASTMD638 |
| Impact | Nominal Value | Unit | Test Way |
| Notched Izod impact ( 3.2mm) | 1.8 | Kgf-cm/cm | ASTMD256 |
| Thermal | Nominal Value | Unit | Test Way |
| Deflection temperature under load (1.82MPa) | 150 | °C | ASTMD648 |
| Flamability | Nominal Value | Unit | Test Way |
| UL Flame Retardant Rating (3.2mm) | HB | UL-94 | |
| Electrical | Nominal Value | Unit | Test Way |
| Surface resistivity | <200 | ohm/sq | ASTMD257 |

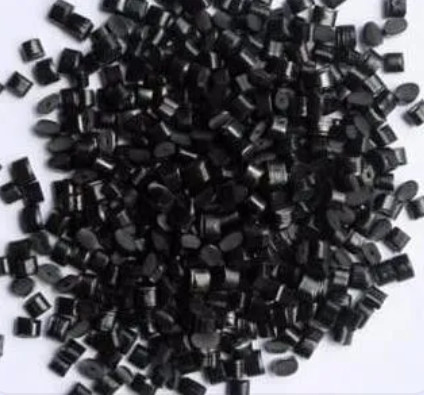

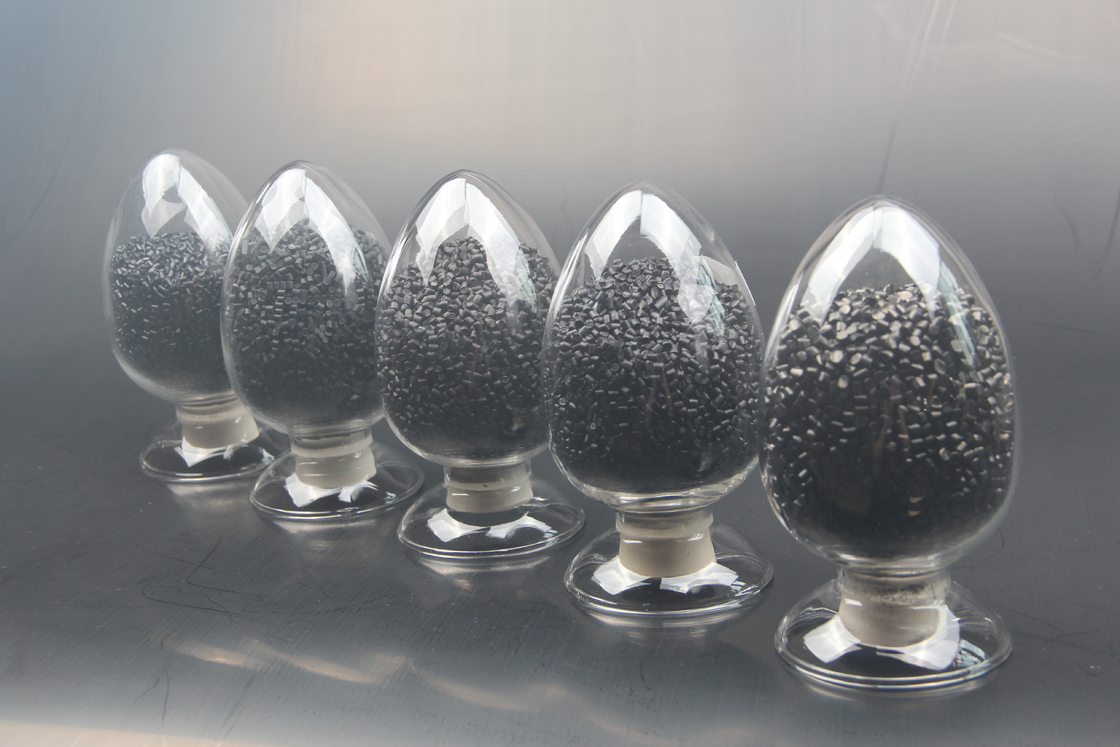

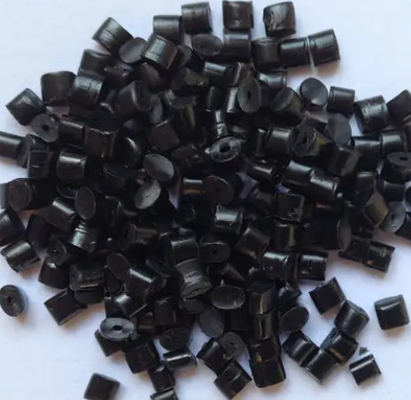

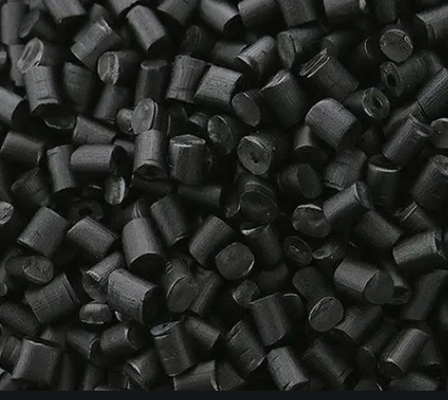

Actual pictures:
Application Picture IC tray made by Conductive PPO:
