Esd Raw Materials Of Static Resistant Vacuum Formed Plastic Packing
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | SUGO ESD PLASTICS |
| Certification: | ISO9001:2008 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 kgs |
|---|---|
| Price: | USD/KG |
| Packaging Details: | 25Kg/Bag, 40 Bags/Pallet, Wrapped with Shrinkage Films |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 Tons Monthly |
|
Detail Information |
|||
| Description: | Conductive Carbon Black HIPS Master Batch | Conductive Additves: | Carbon Black |
|---|---|---|---|
| Dose 1: | 60% For 10^3~5 Ohms | Dose 2: | 55% For 10^4~8 Ohms |
| Dose 3: | 20% For 1*10^10~E13 Ohms | Pre-Dry Condition: | 80℃ By 4~5 Hours |
| Storage Condition: | In A Dry And Ventilated Environment To Avoid Getting Wet And Exposed To The Sun | Working Temperature: | 200~210℃ |
| Flammability Rating: | UL 94 HB | Izod Notched Impact Strength: | 8.0 Kgf-cm/cm |
| High Light: | Vacuum esd mat material,static resistant materials,esd static resistant materials |
||
Product Description
Raw Materials of Anti Static Vacuum Formed Plastic Packing

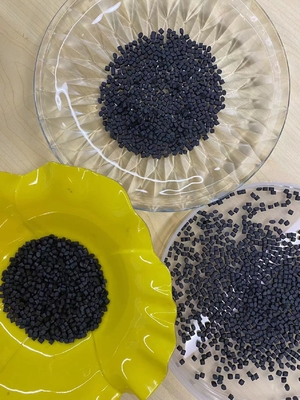

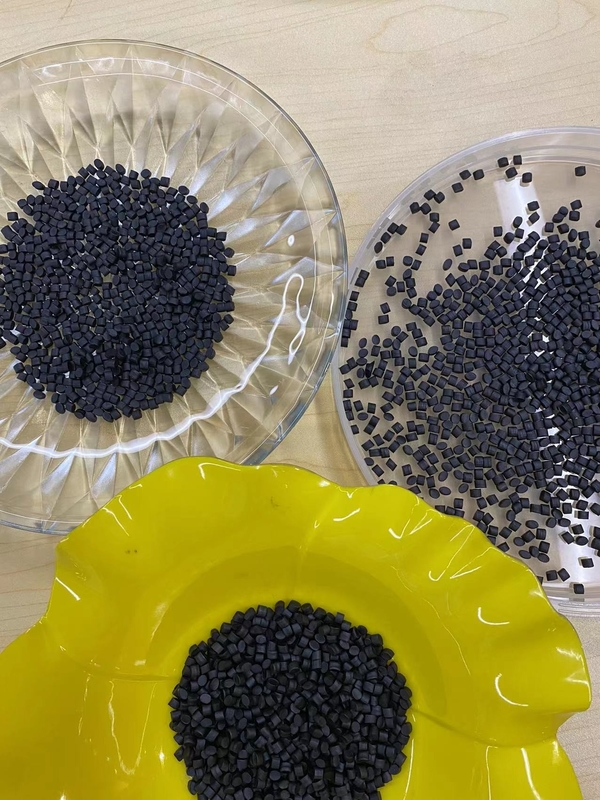

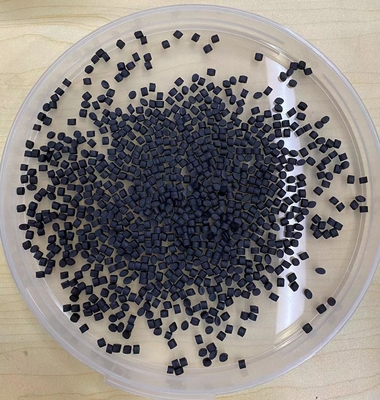

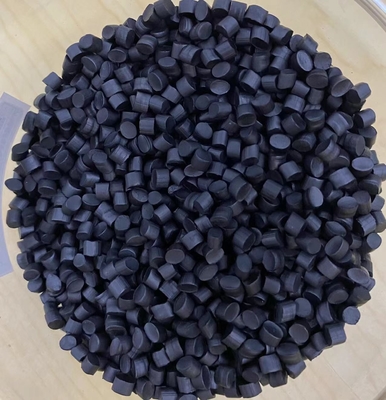

Cargo Description: Conductive Carbon Black HIPS Master Batch
The first important step to run mass production the the anti static vacuum formed blister tray,
is to make sure compounds is dry enough.
for examples, the pre-dry conductive is 80°C by 4~5 hours for HIPS conductive master batch
blending with PS resin.
and then, you need to adjust the working temperature start from 150°C then increase by 5°C
each time, stop incrase it until the compounds is fully melted, then you can go ahead to run
mass production.
Here is the dose for reference:
