Cylindrical Black Antistatic Masterbatch Functional Type ESD Protection

Product Description

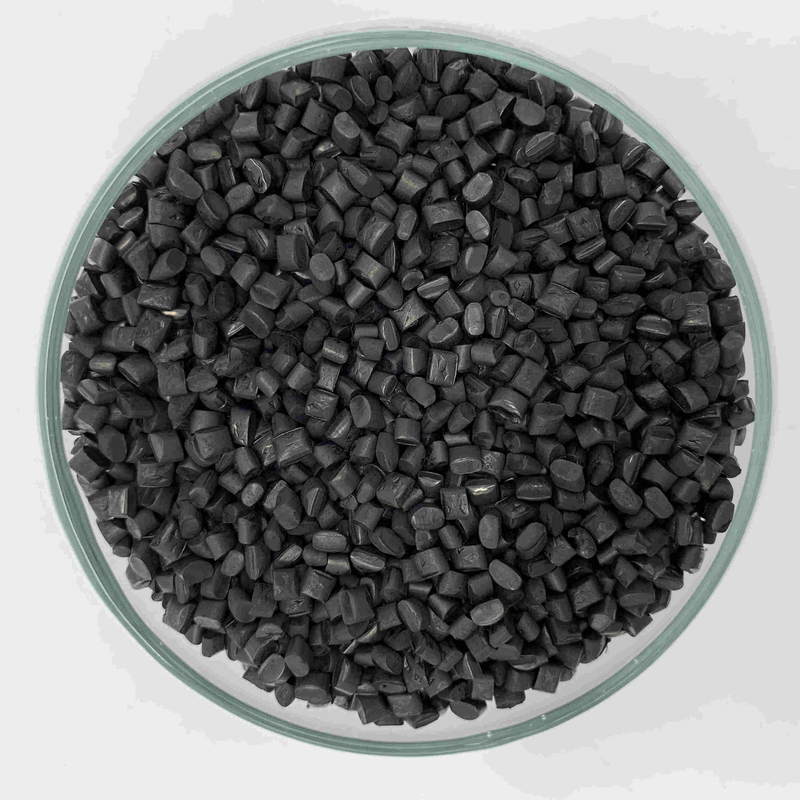

Cylindrical Black Antistatic Masterbatch Functional Type ESD Protection

Antistatic Masterbatch has been designed specially to meet the needs of polystyrene cups and thermoforming sheets that helps in elimination of dust deposits and other related aesthetic and contamination problems that are encountered during their storage and use in dry climatic, environmental conditions.

This masterbatch is used in PE-PP-PS polymers to prevent static elasticity, improves printing ability, and does not absorb dust on the film surface.

Most of these polymers are inadequate to electricity and have a high ability to absorb elasticity. These properties cause problems in the film production process (PP-PE) and injector components. Residual alimentary staining often occurs by rubbing the polymer onto another polymer or passing the polymer out of the extruded rollers.

Graphite and graphene Filled

Graphite and graphene powders impart both electrical and thermal conductivity when compounded into polymers. Although the percolation threshold is higher with graphite fillers, graphite has the capability of being loaded at higher weight percentages than carbon black and imparts very low resistivity, in some cases as low as 10e2 ohm-cm. Graphene performs better at lower loadings compared to graphite in electrical and thermal applications. For thermally conductive applications, compounds can exhibit heat transfer values in the 5 - 20 w/mk range. Applications for graphite and graphene filled compounds include: fuel cell bipolar plates, heat sinks and housings, and geothermal pipes.

• Surface Resistance:30-50Ω, it can be adjusted from 10E3-10E9 ohm/sq according to customer's requirement.

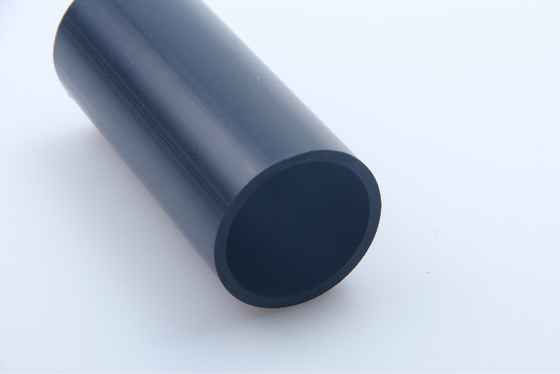

• Conductive PS masterbatch is suitable for injection grade and/or extrusion grade, with excellent electrical conductive rate and flexibility.
• Application field: Sheet, or where freedom from electrostatic hazard is an important consideration.
• SGS certified.
