ESD Protective Polyamide PA6 CNT Conductive Masterbatch Compound
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | SUGO |
| Certification: | ISO9001:2008 |
| Model Number: | AD1115 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 kgs |
|---|---|
| Price: | USD/KG |
| Packaging Details: | 25Kg/Bag, 40 Bags/Pallet, Wrapped arround with shrinkage film |
| Delivery Time: | 3-7 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 tons monthly |
|
Detail Information |
|||
| Full Name: | Polyamide PA6 + Carbon Nano Tube | Surface Resistivity: | Less Than 30 Ohms |
|---|---|---|---|
| CNT Content: | 15wt% | Moisture: | Less Than 0.4% |
| Tensile Strength: | 72-74 Mpa | Elongation: | 2.2-4% |
| Bend Modulous: | 2860-3280 Mpa | Pre Drying: | 100°C For 4-5 Hours |
| High Light: | Polyamide PA6 CNT Conductive Masterbatch,ESD Protective Conductive Masterbatch,Polyamide PA6 CNT Masterbatch Compound |
||
Product Description

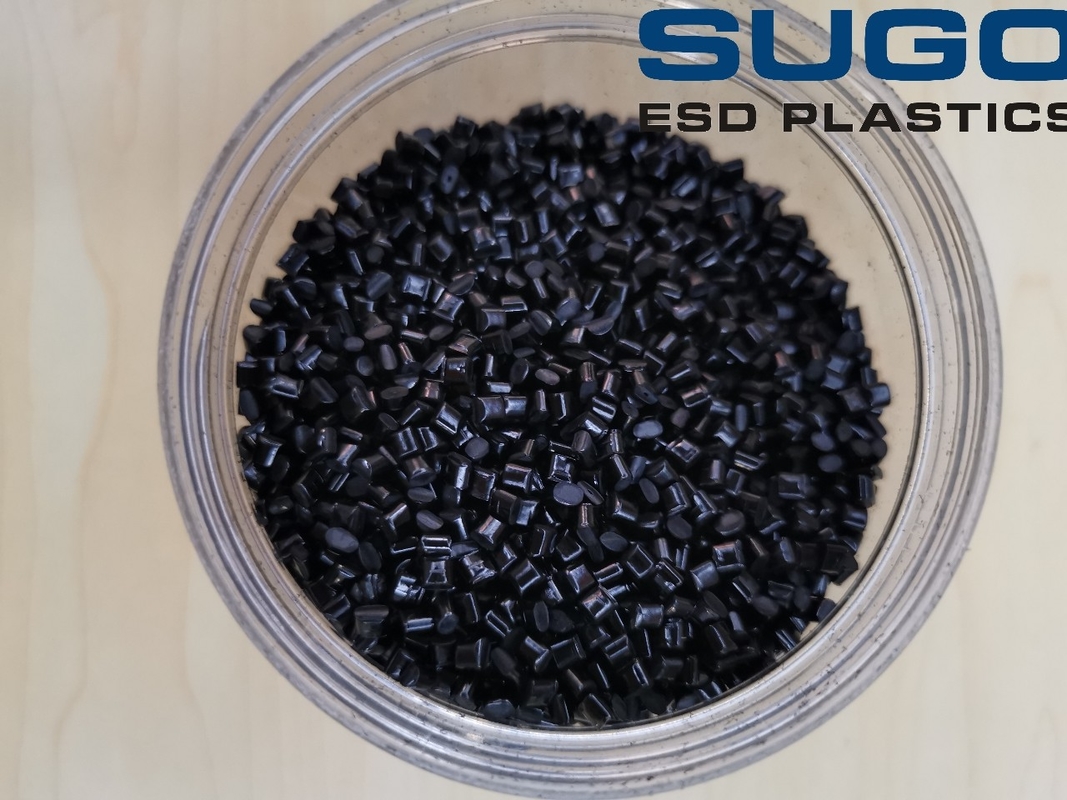

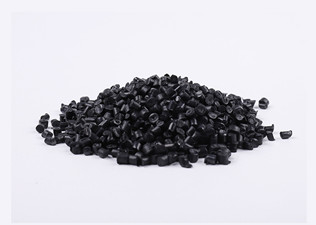

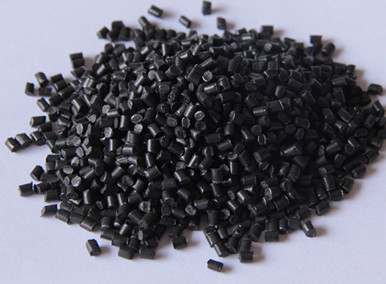

Polyamide PA6 + CNT Conductive Master Batch In Granules
This is a conductive master batch, can not be injected or extruded directly, once mixed 20% to 35%
with 80% to 65% Polyamide PA6, the surface resistivity of related compounds will be down to 1*10^10
ohms to 1*10^8 ohms.
Our Item No. of AD1115 is a composite conductive masterbatch of carbon nanotubes and thermo
-plastics. carrier is PA6, with 15wt% CNT, used for the fields that requested excellent ESD protective
function.
Application:
1. Electronic and electric products industry;
2. Explosion-proof equipment;
3. Conductive and antistatic cables, sheets, rods and tubes;
4. Auto parts.
Graph (Different filling percentage of Master Batch of AD1115 leads to different Surface Resistivity)
