26 Ohms ABS CNT Conductive Masterbatch For Optical Lens Tray
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | SUGO |
| Certification: | ISO9001:2008 |
| Model Number: | HD1115 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 kgs |
|---|---|
| Price: | USD/KG |
| Packaging Details: | 25Kg/Bag, 40 Bags/Pallet, Wrapped With Shrinkage Film |
| Delivery Time: | 3-7 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Tons Monthly |
|
Detail Information |
|||
| Full Name: | Acrylonitrile Butadiene Styrene + Carbon Nano Tube Conductive Master Batch | Filling % Of CNT: | 15% In Weight |
|---|---|---|---|
| Surface Resistivity: | 26 Ohms | Item No.: | HD1115 |
| Density: | 1.18 Kg/cm3 | Application 1: | Optical Lens Tray |
| Application 2: | Electronic Package | Application 3: | Conductive And Antistatic Extrusion Profile |
| Commercial: | Active | Elongation: | 2.2-3.2% |
| High Light: | ABS CNT Conductive Masterbatch,Optical Lens Tray Conductive Masterbatch,26 Ohms Granula Masterbatch |
||
Product Description

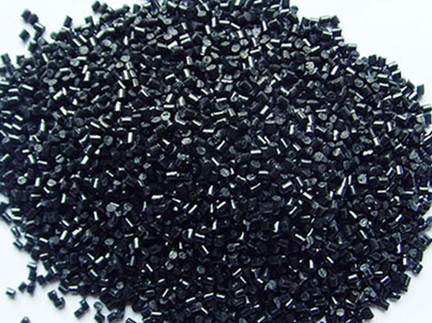

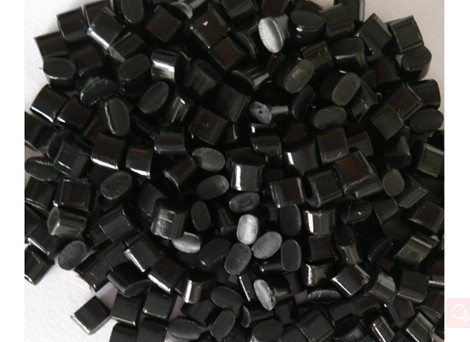

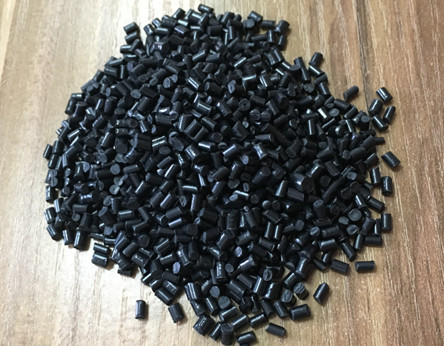

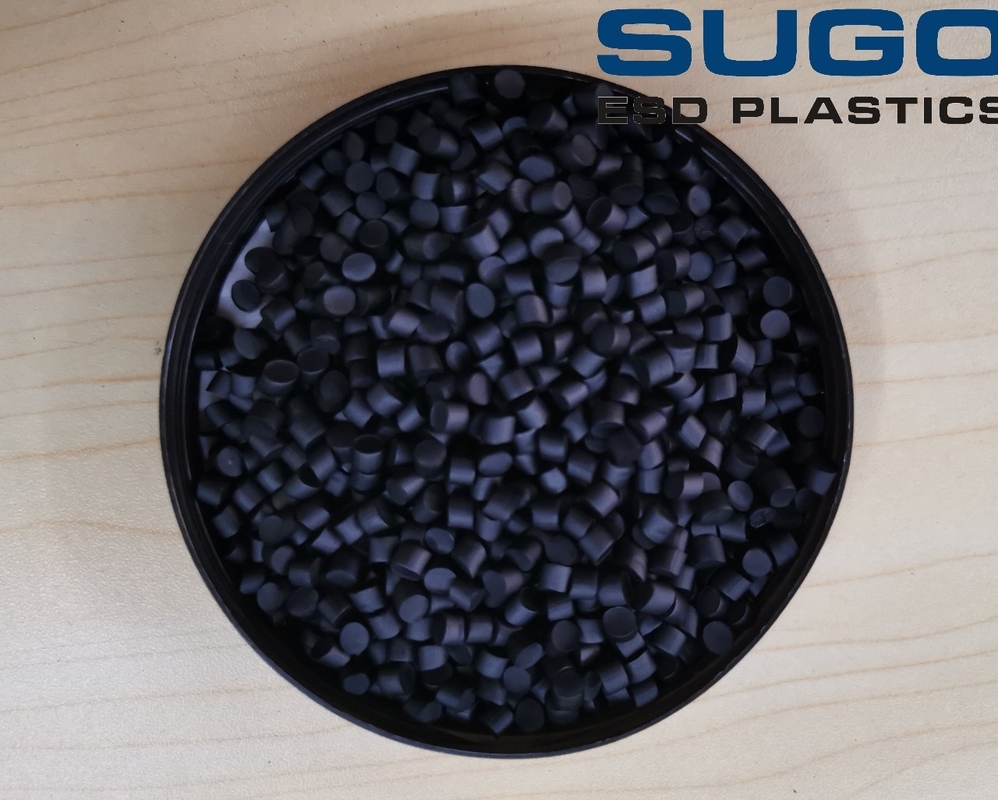

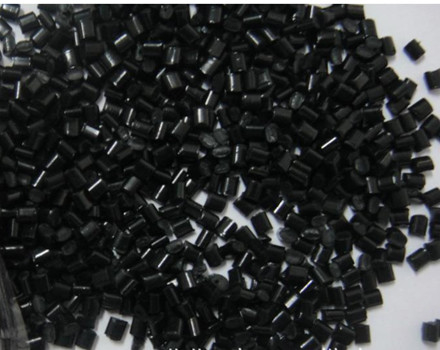

ABS + CNT Conductive Master Batch in Particles Used For Optical Lens Tray
How can you effectively mitigate conductivity issues before they affect safety, productivity, and
profitability? Our Conductive ABS + CNT Conductive Master Batch offers electrical properties
spanning the surface resistivity spectrum from 100 to 10^11 ohm/sq and are formulated for
injection molding or extrusion processing.
Come here to refer to below TDS of HD1115:
| Item | Nominal value | Unit | Test method |
| Specific gravity | 1.18 | g/cm³ | ISO1183 |
| Tensile strength | 42-52.8 | Mpa | ISO 527 |
| Flexural modulus | 2230-2810 | Mpa | ISO 178 |
| Flexural strength | 80-85 | Mpa | ISO 178 |
| Tensile elongation | 2.2-3.2 | % | ISO 527 |
| Notched Izod impact ( 3.2mm) | 5-10.8 | Kgf-cm/cm | ISO 179 |
| Surface resistivity | <30 Ohms | ohm/sq | ISO 179 |
Any questions can get reach with us at any time!
We are manufacturer with strong R&D ability, if you don't want to buy master batch, tell us your
final application and surface resistivity, we will resear and develop a unique conductive/antistatic
compounds for you.
We are here and waiting for you!
