Polyphenylene Oxide Carbon Nano Tube Conductive Master Batch for IC Tray from SUGO ESD PLASTICS
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | SUGO |
| Certification: | ISO9001:2015; ISO14001:2015; ISO45001:2018 |
| Model Number: | FD1115 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 kgs |
|---|---|
| Price: | USD/KG |
| Packaging Details: | 25Kg/Bag, 40 Bags/Pallet, Wrapped With Shrinkage Film |
| Delivery Time: | 3-7 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1200 Tons Monthly |
|
Detail Information |
|||
| Model No.: | FD1115 | Surface Conductivity: | 30 Ohms |
|---|---|---|---|
| Appearance: | In Black Granules | Moisture: | <0.15g/cm³ |
| Carrier: | Polyphenylene Oxide | FIller: | Carbon Nano Tube |
| CNT: | 15% | Application: | IC Tray |
| Elongation: | 5% | Appreance: | Granule Pellets |
| Clients: | Manufacturer Of ESD PPO Tray | Stock Quantity: | 100 Tons |
| Applied For: | Injection | Conductive Additves: | Carbon Nano Tube |
| Ash: | 0.1-20% | Masterbach Length: | 2-3mm |
| Working Temperature: | 200~210℃ | ||
| Highlight: | PPO CNT Conductive Masterbatch,Conductive Masterbatch For IC Tray,PPO CNT esd protection material |
||
Product Description

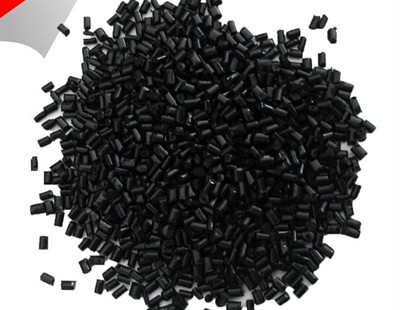

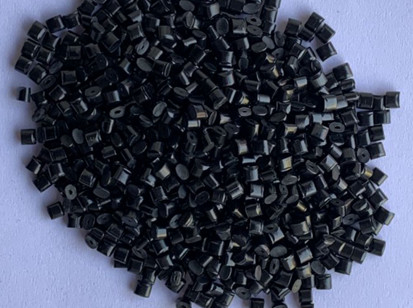

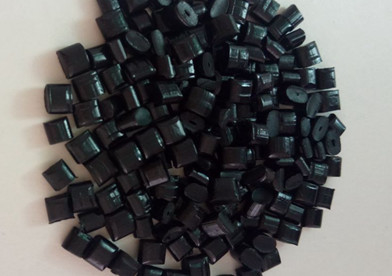

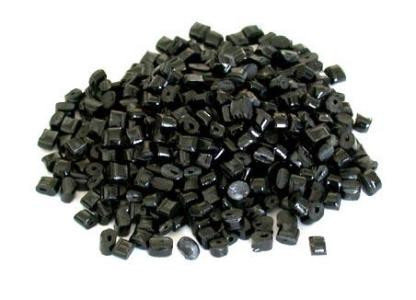

Polyphenylene Oxide + Carbon Nano Tube In Granules Conductive Master Batch Used For IC Tray
FD1115, is a conductive master batch composited by PPO and CNT, which is a perfect conductive
filler used for IC tray.
CNT was discovered in January 1991 by sumio Iijima, a physicist at NEC Laboratory in Tsukuba,
Japan, using a high-resolution transmission electron microscope from carbon fiber products prod
-uced by the arc process. It is a kind of tube carbon molecule, each carbon atom on the tube takes
sp2 hybridization, with carbon - carbon σ bond between each other, forming a honeycomb structure
composed of hexagons as the skeleton of carbon nanotube.
It enjoys a feature of no dust be detected no ever how long the IC Tray after formed have been used,
no pollution, really a good filler for conductive compounds of IC Tray.
Density is 1.15 kg/cm3
Surface Resistivity is less than 30 Ohms.
Dosage:
| No. | Dosage of PPO Conductive Masterbatch | Dosage of PPO Resin | Surface resistivity |
| 1 | 75% | 25~30% | 10^6~9 ohms/sq |
| 2 | 65% | 35-40% | 10^3~5 ohms/sq |
If you don't like such conductive master batch with filler of carbon black, come here to use filled with CNT.
Application:
Aerial View of our factory SUGO ESD PLASTICS:
