Granula PPS CNT Conductive Masterbatch For Electronics Packages
Product Details:
| Place of Origin: | China |
| Brand Name: | SUGO |
| Certification: | ISO9001-2016 |
| Model Number: | GD1115 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 kgs |
|---|---|
| Price: | USD / KG |
| Packaging Details: | 25Kg/Bag, 40 Bags/Pallet |
| Delivery Time: | 3-7 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Tons Monthly |
|
Detail Information |
|||
| Full Name: | Polyphenylene Sulfide + Carbon Nano Tube Master Batch | Surface Resistivity: | <30 Ohms |
|---|---|---|---|
| Color: | Black | Density: | 1.45Kg/cm3 |
| Advantage 1: | No Powder Off, Surface Is Clear | Advantage 2: | Simple Filling And No Powder Pollution |
| Carbon Nano Tube Content: | 15% +/- 0.5 | ||
| High Light: | PPS CNT Conductive Masterbatch,Polyphenylene Sulfide Carbon Nanotube Conductive Masterbatch,PPS CNT static dissipative plastic |
||
Product Description
PPS + CNT Conductive Masterbatch In Granules (Polyphenylene Sulfide + Carbon Nano Tube)
This is a Conductive Master Batch,
Carrier : Polyphenylene Sulfide (PPS)
Filling: Carbon Nano Tube (CNT)
This is a new conductive Master Batch in our company, some clients reflected that the master
batch filled with Carbon Black appears powder off, which is really a unhappy experience.
The innovation of this Plastics + CNT is to endup the above case, and CNT is researched and
developped to replace Carbon Black in the field of conductive master batch.
You will find that PPS+CNT after formed (injection or extrusion) enjoys a very smooth and bright
surface, surface will be very clear no even how long it be used.
Here is some Technical Datas for your reference:
| Density | 1.45 g/cm3 ISO 1183 |
| Surface Resistivity | <30 Ohms ASTM D257 |

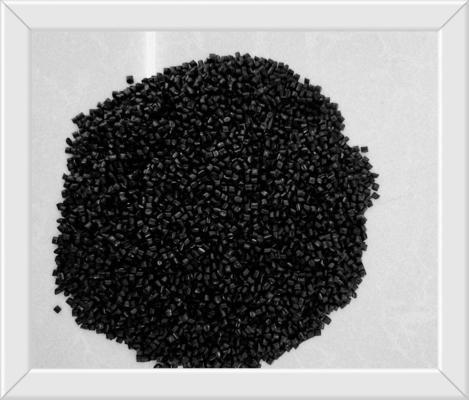

| Appearance | In Black Granules |
| CNT Content | 15.0% +/-0.5 ASTM D6980 |
| Tensile Strength | 55-60 Mpa |
| Elongation | 1% |
| Yield Strength | 95-100Mpa ISO178 |
| Filling Percentage 15% | SR = 1.2*10^6 Ohms |
| Filling Percentage 25% | SR = 8.6*10^4 Ohms |
| Filling Percentage 35% | SR = 6.3*10^3 Ohms |
The Pre-heating before processing is required for 3-4 hours at 130 °C
Application:
1. Used for Electronics Packages;
2. Used for IC Tray, Carrier Reels;
3. Conductive and Antistatic sheets and rods;
4. Used for auto motors parts.
