Conductive Polypropylene Masterbatch For Semiconductor Package
Product Details:
| Place of Origin: | DONGGUAN, China |
| Brand Name: | SUGO |
| Certification: | ROHS, REACH |
| Model Number: | TH2160BK |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 kgs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25kg per bag, paper bag with inner PE layer |
| Delivery Time: | 3-7 days |
| Payment Terms: | 100% T/T before shipment, or LC at sight |
| Supply Ability: | 2500TONS/M |
|
Detail Information |
|||
| Color: | Black | Shape: | Small Granule |
|---|---|---|---|
| Surface Resistance: | 41- 48 Ohms | Density: | 1.15 Kg/cm3 |
| Function: | Eletrically Conductive And Anti-Static Discharge | Carrier: | Polyepropylene |
| Filling Percentage 1: | 40% Filling To Get A Surface Resistivity Of 10E6-9 Ohm For Film | Application: | Semi Conductor Package |
| Storage: | To Be Stored Indoor At Room Temperature. | Moisture: | <0.15g/cm³ |
| High Light: | Conductive Masterbatch,Masterbatch For Semiconductor Package,Semiconductor Package Conductive Masterbatch |
||
Product Description
Conductive Polypropylene Masterbatch Used For Semi Conductor Package and sheet
We offer a conductive masterbatch for melt processing mainly with polypropylene. Our masterbatch is based
on inherently conductive polypropylene. Benefits of our masterbatch. The conductivity of plastic blends
containing our masterbatch can be tailored over the whole range of semi conductors. Our masterbatch forms
a conductive network structure within matrix polymer instead of acting as filler. The conductive/dissipative prop
-erty is permanent and built into the polymer chain. Our masterbatch has been developed mainly for injection
moulding applications. Our masterbatch should be used in 30-50 % ratio to reach surface resistance values from
10E3 to 10E9.
The products made out of our masterbatch are reusable and recyclable.
Typical applications include injection moulded boxes and hollow sheet etc. giving permanent ESD protection for the
various packaging applications.

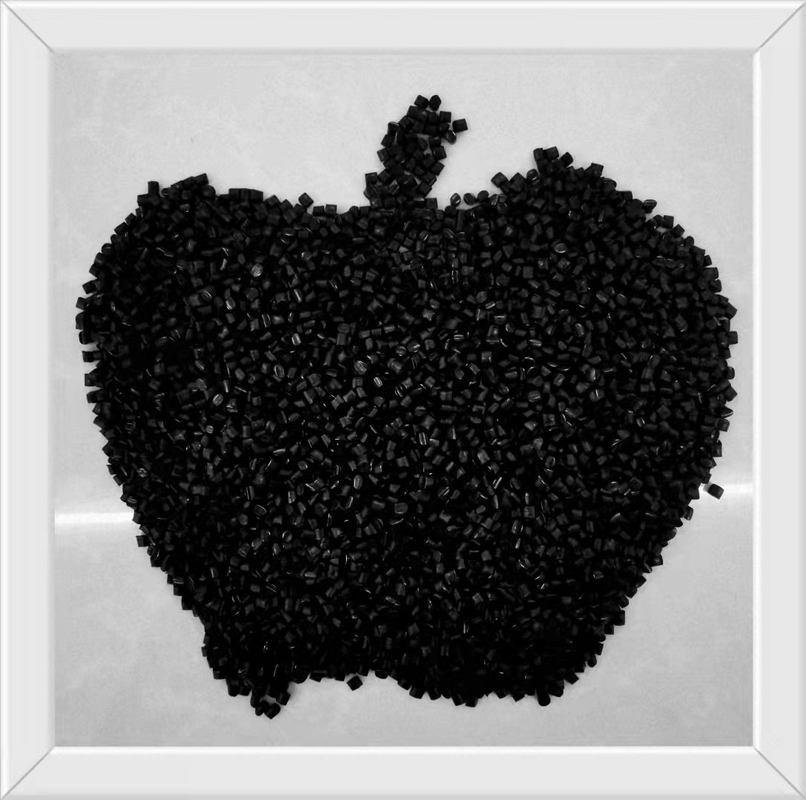

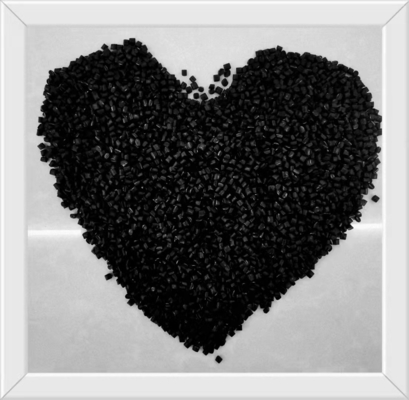

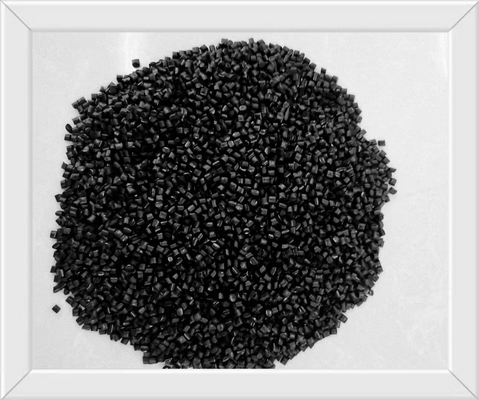

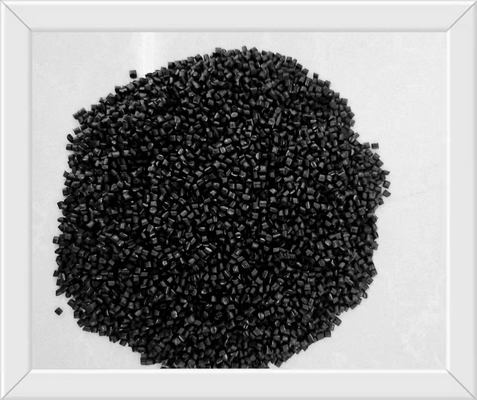

Appearance: Granule
Color: black
Packaging: 25kg moisture impermeable bags under normal storing conditions.
Unnecessary contact with ambient air should avoid. Open bags of our Masterbatches must be sealed properly
after usage
Drying: Material is hygroscopic. If material gets moist, it's recommended to be dried with a dehumidifying drier
for 12 hours at 60 degree C (140 degree F)
Package:
Production Line Corner:
