Super Transparent TPU Antistatic Masterbatch for Permanent Anti Static Function
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | SUGO |
| Certification: | ISO9001:2015; ISO14001:2015; ISO45001:2018 |
| Model Number: | YF1004 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 Kgs |
|---|---|
| Price: | USD/KG |
| Packaging Details: | 25Kg/Bag, 40 Bags/Pallet, Wrapped arround with shrinkage film |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1200 Tons Monthly |
|
Detail Information |
|||
| Description: | Anti Static TPU Master Batch | Inherent Surface Resis: | 10E4 |
|---|---|---|---|
| Color: | Super Transparent | Basic Plastics: | TPU |
| Hardness: | 80A | Density: | 1.20 G/cm3 |
| Melting Point: | 170 °C | Thermal Decomposition Temperature: | >240 °C |
| Filling Percentage: | 15-20% | Grade: | Injection Grade. Extrusion Grade Etc |
| Anti Static Style: | Permanently | Corrosion Type: | Corrosion Less |
| Use: | Be Used In Any Thermoplastic Process | Usage: | Additive |
| Pre Drying: | 60°C For 2-3 Hours | Shape: | Small Particles |
| Adding Amount: | 15%-20% | Standard: | Environmental Friendly |
| Application Ratio: | According To The Customer's Requirements | Application: | Plastic Products |
| Highlight: | Anti Static TPU Masterbatch,Super Transparent TPU Masterbatch,Anti Static Masterbatch 10E4 Ohms |
||
Product Description

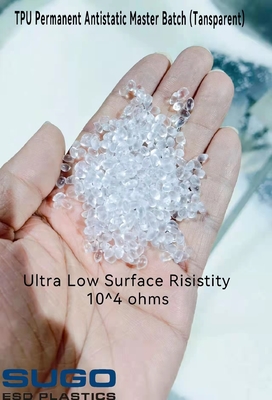

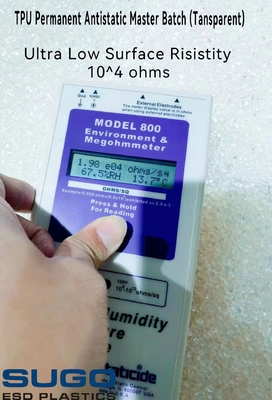

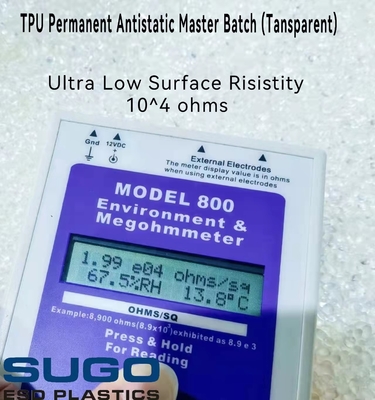

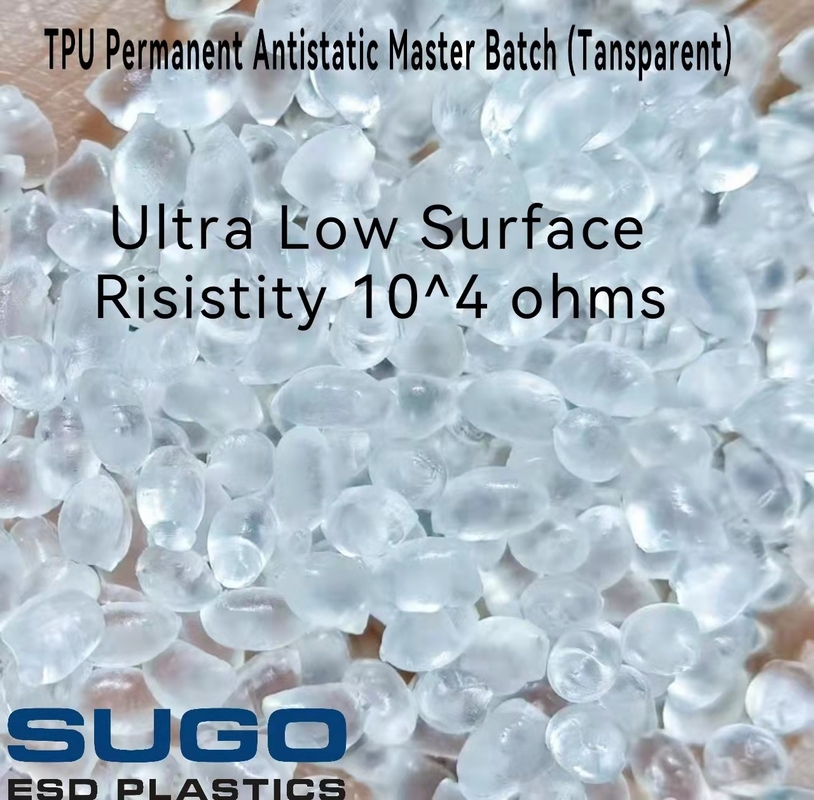

TPU Antis Static Master Batch With Super Low Surface Resistivity 10E4 Ohms
TPU ANTISTATIC MB- YF1004-TDS.pdf
YF1004 is a permanent antistatic agent developed for TPU, With its excellent properties of
Super transparent and super low Surface Resistivity, it is very suitable for anti static master batch
used for polyester TPU and CPU, very few affact on natural property of basic TPU, and can
meet permanent anti static function after compounded.
This is a revolutionary transparent conductive TPU masterbatch designed to deliver permanent
electrostatic discharge (ESD) protection while maintaining exceptional optical clarity. Engineered
for thermoplastic polyurethane (TPU) applications, this advanced additive achieves surface resistivity
<10⁸ Ω/sq at 15-20% loading, ensuring compliance with ANSI/ESD S20.20 and IEC 61340-5-1 standards.
Ideal for wearable devices, optical lenses, medical tubing, and luxury consumer goods, it addresses the
growing demand for transparent ESD-safe materials in EU/US markets.
Specifications:
| Testing Subject | Testing Standard | Unit | Testing Result |
| Surface Resistance | ASTMD257 | Ω.cm | 1.0*10E4 |
| Melting Index (190℃,2.16kg) |
ASTM D1238 | g/10min | 7.5 |
| Melting Point | DSC | °C | 170 |
| Index of Refraction | ASTM D542 | - | 1.5 |
| Thermal Decomposition Temperature | TGA | °C | >240°C |
| * Specific performance and parameters can be customized according to customer's requirement. | |||
| Electrical Properties | |
| Filling % of Anti Static TPU Master Batch | Surface Resistivity of TPU Compounds |
| 20% | 1*10E7 Ohms/Square |
| 15% | 1*10E8 Ohms/Square |
| 10% | 1*10E8-9 Ohms/Square |
| 5% | 1*10E9-10 Ohms/Square |
Application----TPU Antistatic Film
