Super Transparent Anti Static TPU Masterbatch 10E4 Ohms
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | SUGO |
| Certification: | Rohs, ISO9001:2008 |
| Model Number: | YF1004 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 Kgs |
|---|---|
| Price: | USD/KG |
| Packaging Details: | 25Kg/Bag, 40 Bags/Pallet, Wrapped arround with shrinkage film |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1200 Tons Monthly |
|
Detail Information |
|||
| Description: | Anti Static TPU Master Batch | Inherent Surface Resis: | 10E4 |
|---|---|---|---|
| Color: | Super Transparent | Basic Plastics: | TPU |
| Hardness: | 75A | Density: | 1.25 G/cm3 |
| Melting Point: | 170 °C | Thermal Decomposition Temperature: | >240 °C |
| Highlight: | Anti Static TPU Masterbatch,Super Transparent TPU Masterbatch,Anti Static Masterbatch 10E4 Ohms |
||
Product Description

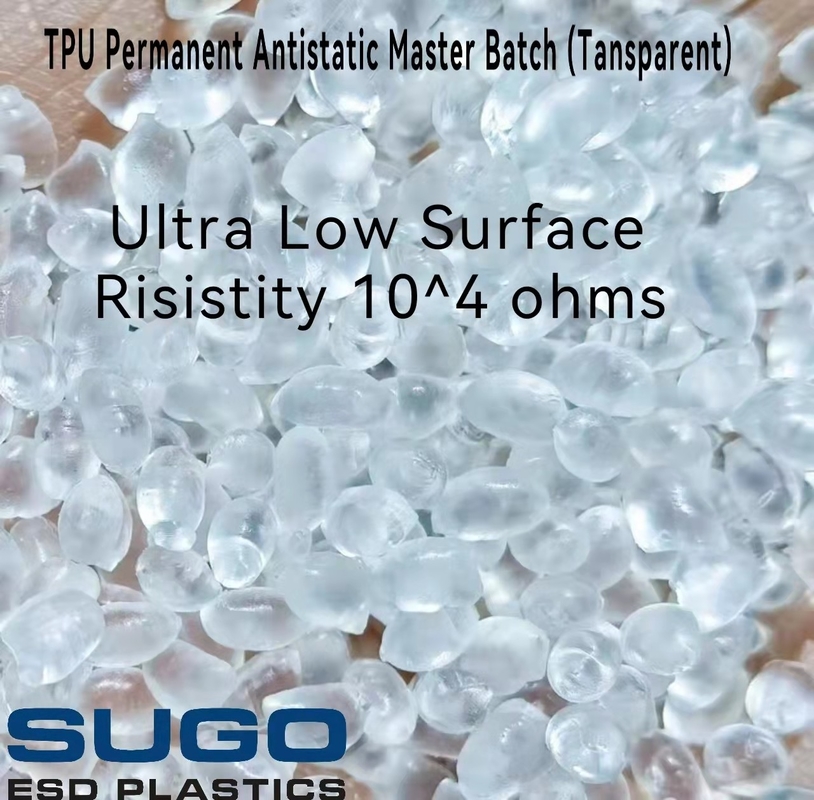

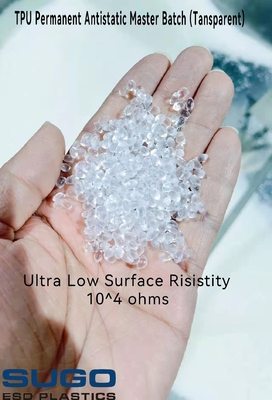

TPU Antis Static Master Batch With Super Low Surface Resistivity 10E4 Ohms
TPU ANTISTATIC MB- YF1004-TDS.pdf
YF1004 is a permanent antistatic agent developed for TPU, With its excellent properties of
Super transparent and super low Surface Resistivity, it is very suitable for anti static master batch
used for polyester TPU and CPU, very few affact on natural property of basic TPU, and can
meet permanent anti static function after compounded.
Specifications:
| Testing Subject | Testing Standard | Unit | Testing Result |

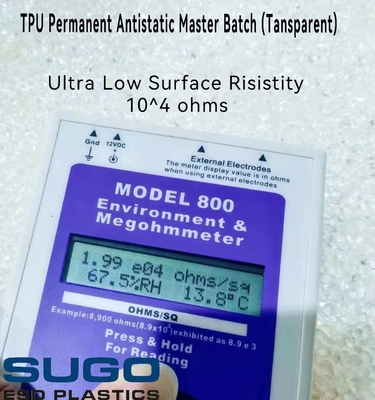

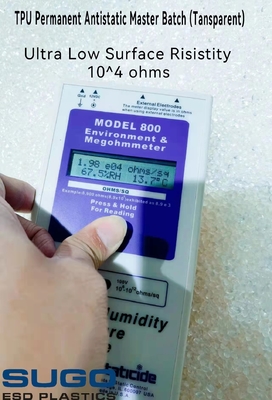

| Surface Resistance | ASTMD257 | Ω.cm | 1.0*10E4 |
| Melting Index (190℃,2.16kg) |
ASTM D1238 | g/10min | 7.5 |
| Melting Point | DSC | °C | 170 |
| Index of Refraction | ASTM D542 | - | 1.5 |
| Thermal Decomposition Temperature | TGA | °C | >240°C |
| * Specific performance and parameters can be customized according to customer's requirement. | |||
| Electrical Properties | |
| Filling % of Anti Static TPU Master Batch | Surface Resistivity of TPU Compounds |
| 20% | 1*10E7 Ohms/Square |
| 15% | 1*10E8 Ohms/Square |
| 10% | 1*10E8-9 Ohms/Square |
| 5% | 1*10E9-10 Ohms/Square |
Application----TPU Antistatic Film
Want to Know more details about this product
