TPE Easy Coloring Anti Static Master Batch
Product Details:
| Place of Origin: | DONGGUAN, China |
| Brand Name: | SUGO |
| Certification: | ROHS, REACH |
| Model Number: | YF3019 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 kgs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25kg per bag, paper bag with inner PE layer |
| Delivery Time: | 3-7 days |
| Payment Terms: | 100% T/T before shipment, or LC at sight |
| Supply Ability: | 800TONS/M |
|
Detail Information |
|||
| Product Name: | ESD Filler Master Batch | Standard: | Environmental Friendly |
|---|---|---|---|
| Function: | Anti Static | Advantage: | Stable Electrical Capacity |

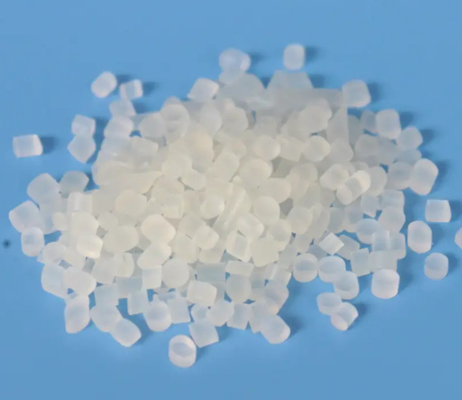

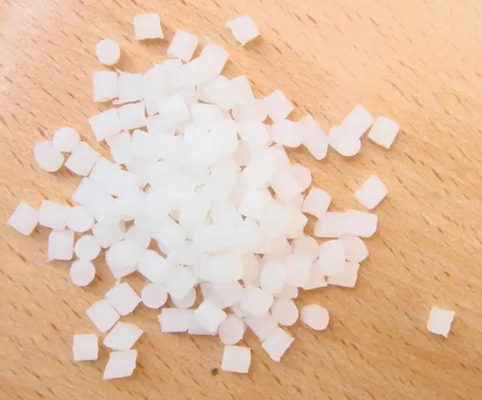

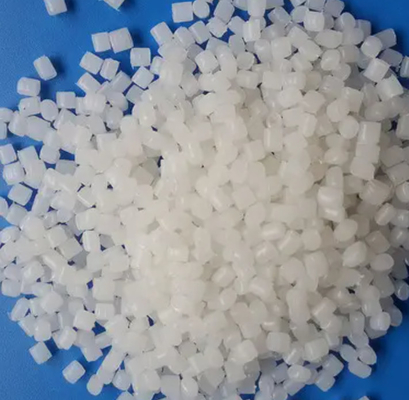

| Shape: | In Ivory Pellet | Usage: | TPE Resin |
| Inherent S/R: | 10^6 Ohms | Dose: | 20% Of YF3019 +80% TPE, Can Down The S/R To 10^8 Ohms |
| High Light: | electrically conductive compounds,semi conductive compounds,Easy Coloring Anti Static Master Batch |
||
Product Description
Easy Coloring Anti Static Master Batch Used For TPE
Product Description
YF3019 is an Antistatic Masterbatch has been designed specially to meet the needs of decrease the S/R of TPE resin
helps in elimination of damage caused by ESD discharge and dust deposits .
This masterbatch is used in TPE to prevent static elasticity, improves printing ability, and does not absorb dust on the surface.
| Propertities | Test conditions | Test method | Nominal value | Unit | |
| Appearance | IVORY | ||||
| Carrier | TPE resin | ||||
| Application | Casters | ||||
| Processing method | Injection/extrusion | ||||
| Physical | Specific gravity | ASTM D-792 | 1.34 | g/cm3 | |
| Moisture | Internal | <0.15 | % | ||
| MFI | 190oC/2.16kg | ASTM D-1238 | 15 | g/10min | |
| Electrical | Surface resistivity | ASTM D-257 | 1*10E6 | Ohm/sq | |
| Processing method | Drying time and temp | Drying time: 4-5hrs, tempreture:60-70oC | |||
| Extrustion temperature | 140oC-180oC | ||||
Applicable scope
1. This product is with High content of antistatic agent, can join less proportion It could effectively reduce customers’ costs.
2. Good dispersion performance
3. High efficiency, join 20% antistatic masterbatch into TPE polymer. the surface resistivity will be dropped to below 10^8 ohm
at once after formed.
4. During the production of thinner sheet, in cool winter, or in low temperature environment, suggest appropriately increase
the masterbatch amount.
More products:
| ESD Series | ||||
| TYPE | Material | Grade | Processing method | Application |
| ESD ENGEERING PLASTICS COMPOUND: | PA | ·Conductive 102x 105ohms/square · Static dissipative 106x 109ohms/square · Antistatic 108x 1011ohms/square | Injection | Rod, sheet, IC trays, housings, electronic components, etc |
| PC | ||||
| PC/ABS | ||||
| PBT | ||||
| POM | ||||
| PPO/PPE | ||||
| ESD SPECIAL PLASTICS COMPOUND: | PPS | electrical & eletronics components, Auto parts, medical equipment, etc | ||
| PEI | ||||
| PES | ||||
| PSU | ||||
| PEEK | ||||
| LCP | ||||
| ESD GENERAL PLASTICS COMPOUND | ABS | Injection, extrusion | Rod, sheet, film, tube, etc | |
| PP | ||||
| PS | ||||
| PE | Injection, extrusion, blowing | |||
| ESD THERMOPLASTIC ELASTOMER | TPE | Injection, extrusion | Auto parts, extruded products, eletrical & eletronics components, traffic equipment | |
Why choose us
(1) Easy to handle and disperse, no dust
No grinding is necessary. Under high-speed dispersion, basic painting occurs between 30 and 45 minutes. It is enough to have high-speed dispersion equipment without any need to invest large amounts of money to buy grinding equipment. It can be produced at any scale, from mass production to the laboratory. In addition, the inventory can be significantly reduced. Also, when cleaning and changing colors, it will be easier to clean the dispersion equipment.
(2) Available from unique technical merits and the most complete humidity of the pigment
With the techniques, our pigment will make the carrier resin more humid. Therefore, it will give more luster and better transparency. As a result, foam and adhesion are reduced due to poor pigment moisture.
(3) The best stability
The continuous quality has been significantly improved between one batch of merchandise and the other and also the stability of reserved colors. In addition, the cost of quality inspection is reduced.
