Conductive PP for Injection Molding 100% ESD Additive Permanent Static Dissipative Low Shrinkage
Product Details:
| Place of Origin: | DONGGUAN, China |
| Brand Name: | SUGO |
| Certification: | ISO9001:2015; ISO14001:2015; ISO45001:2018 |
| Model Number: | K2303 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 kgs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25kg per bag, paper bag with inner PE layer |
| Delivery Time: | 3-7 days |
| Payment Terms: | 100% T/T before shipment, or LC at sight |
| Supply Ability: | 1000TONS/M |
|
Detail Information |
|||
| Product Name: | Conductive PP Compounds | Density: | 1.09kg/cm3 |
|---|---|---|---|
| Surface Resistivity: | 10^3~5 Ohms | MFI: | 12g/10min |
| Shape: | Pellet In Black | Usage: | Injection |
| Processing Method: | Injection | Application: | Wafer Box, Wafer Ship |
| Highlight: | semi conductive polypropylene pellet,electically conductive pp pellet,100 Percent ESD Conductive PP |
||
Product Description
100 Percent ESD Additive Conductive PP Permanent Static Dissipative
This is a conductive compounds, modified by PP resin as carrier and carbon black as conductive addititve,
Specially used for conductive or dissipative PP wafer box or wafer ship.
Here is the Technicial data sheet:
| Physical Property | Value | Unit | Test way |
| Density | 1.09 | g/cm³ | ASTMD792 |
| MFI(200℃/5.0kg) | 12 | g/10min | ASTMD1238 |
| Shrinkage | 1.60 | % | ASTMD955 |
| Mechanical Property | Value | Unit | Test Way |
| Tensile Strength | 188 | Kgf/cm2 | ASTMD638 |
| Flexural Modulus | 8344 | Kgf/cm2 | ASTMD790 |
| Flexural Strength | 350 | Kgf/cm2 | ASTMD790 |
| Elongation | 11.5 | % | ASTMD638 |
| Impact Property | Value | Unit | Test Way |
|
Izod notch impact strength ( 3.2mm) |
23 | Kgf-cm/cm | ASTMD256 |
| Thermal property | Value | Unit | Test Way |
| HDT(0.45MPa) | 70 | °C | ASTMD648 |
| Electrical Property | Value | Unit | Test Way |
| Surface resistivity | E3 | ohm/sq | ASTMD257 |

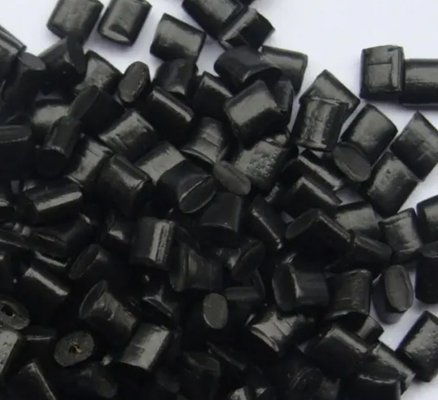

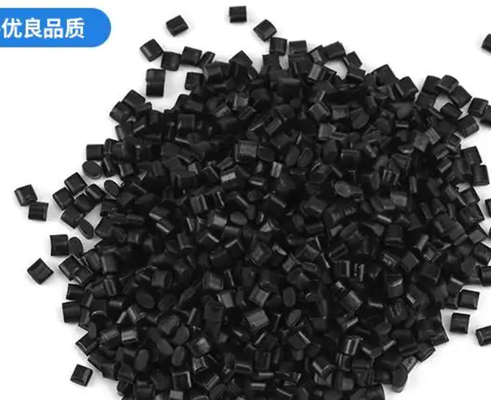

Application picture:
